Mitutoyo Dial Indicator


Mitutoyo Dial Indicator - Mitutoyo 513-402, .0005
Mitutoyo 513-402, .0005" X .030" Horizontal Test Indicator,

Mitutoyo Dial Indicator

Mitutoyo Horizontal Test Indicator, Graduations: .0005", Range: .030", Dial Face: 0-15-0, Includes: Test indicator, .079" carbide contact point, 3/8" stem, clamp nut

  • Color: White
  • Brand: Mitutoyo
  • ASIN: B001C0ZNH2
  • UPC: 603908225201
  • Part No: 513-402
Mitutoyo Dial Indicator - Dial Indicator, 0 to 1 in, 0-100
Dial Indicator, 0 to 1 in,

Mitutoyo Dial Indicator

The Mitutoyo dial indicator has a black or white face, a choice of flat or lug, a 0.375" stem diameter, and inch measurements. The indicator has a 0.375" diameter stem, a #4-48 UNF contact point thread mount, and is used to measure surface variations in fractional inches. The choice of black or white dial and a contrasting hand help make measurements easy to read. The dial indicator comes with a choice of flat or lug back for a variety of mounting options. Flat back dial indicators are either clamp-mounted on the stem or plate-mounted on the rear of the indicator. Lug back dial indicators have a protrusion with a hole to mount the indicator using a lug or nut and bolt. Lug back dial test indicators usually come with the lug installed horizontally. The back on most indicators can be rotated to the vertical position. It has a stem design that provides a long clamping range, no through screw-holes on the frame for dust- and water resistance, and an involute curved lifting lever that provides smooth movement of spindle and dovetail joint for a tool-less connection. This dial indicator meets ANSI standards, Japanese Industrial Standard (JIS) B7503-1997, and American Gage Design (AGD) standards for face and thread size, and bezel and stem diameter. Dial readings with three digits, such...

  • Color: White
  • Brand: Mitutoyo
  • ASIN: B001C0ZOPS
  • UPC: 603908402305
  • Part No: 2416S
Mitutoyo Dial Indicator - Mitutoyo 2776S Dial Indicator, #4-48 UNF Thread, 3/8
Mitutoyo 2776S Dial Indicator, #4-48 UNF Thread, 3/8" Stem Dia., Lug Back, White Dial, 0-50 Reading, 57mm Dial Dia., 0-1" Range, 0.0005" Graduations, +/-0.002"

Mitutoyo Dial Indicator

The Mitutoyo 2776S dial indicator is used to measure surface variations. It has a measurement range of 0 to 1.0", graduations of 0.0005", an accuracy of + or - 0.002", and a range per revolution of 0.05". The dial is white with a contrasting hand for readability. The stem design provides a long clamping range, there are no through screw-holes on the frame for dust- and water resistance, and it has a lug back for mounting from the rear of the indicator. This unit has a 3/8" diameter stem and a #4-48 UNF contact point thread mount. The dial is continuous with a reading of 0-50, for direct readings. It has a force of 2.5 Newtons (N) or less.SpecificationsRange0 to 1.0"Graduations0.0005"Accuracy+ or – 0.002" (overall)Range per revolution0.05"Measuring force2.5N or lessStem#4-48 UNF contact point thread mount with 3/8" diameter spindleFaceDial, white face, lug on backDial reading0-50Dimensions115.7 x 57 x 25.3mm (H x W x D), not including lugShipping weight0.57lb.H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Dial indicators are also called dial gauges, probe, and electronic indicators. These precision instruments measure small linear distances and obj...

  • Brand: Mitutoyo
  • ASIN: B001OBUZP4
  • UPC: 603908405764
  • Part No: 2776S
Mitutoyo Dial Indicator - Mitutoyo 64PKA075 Tool Kit, 0-1
Mitutoyo 64PKA075 Tool Kit, 0-1" Range Dial Indicator, Magnetic Base, Plastic

Mitutoyo Dial Indicator

Tool kit includes: dial indicator and magnetic base. Dial indicator range: 0-1" and resolution: 0.001". Magnetic base with 132 Lbf magnetic pull. Magnetic base with on/off switch. Tool kit comes in plastic case.

  • Brand: Mitutoyo
  • ASIN: B007XZIT5I
  • UPC: 603908554127
  • Part No: 64PKA075
Mitutoyo Dial Indicator - Mitutoyo 2358S-10 Dial Indicator, #4-48 UNF Thread, 0.375
Mitutoyo 2358S-10 Dial Indicator, #4-48 UNF Thread, 0.375" Stem Dia., Lug Back, White Dial, 0-10 Reading, 2.244" Dial Dia., 0-0.5" Range, 0.0001" Graduation, +/-0.0008"

Mitutoyo Dial Indicator

The Mitutoyo dial indicator has a black or white face, a choice of flat or lug, a 0.375" stem diameter, and inch measurements. The indicator has a 0.375" diameter stem, a #4-48 UNF contact point thread mount, and is used to measure surface variations in fractional inches. The choice of black or white dial and a contrasting hand help make measurements easy to read. The dial indicator comes with a choice of flat or lug back for a variety of mounting options. Flat back dial indicators are either clamp-mounted on the stem or plate-mounted on the rear of the indicator. Lug back dial indicators have a protrusion with a hole to mount the indicator using a lug or nut and bolt. Lug back dial test indicators usually come with the lug installed horizontally. The back on most indicators can be rotated to the vertical position. It has a stem design that provides a long clamping range, no through screw-holes on the frame for dust- and water resistance, and an involute curved lifting lever that provides smooth movement of spindle and dovetail joint for a tool-less connection. This dial indicator meets ANSI standards, Japanese Industrial Standard (JIS) B7503-1997, and American Gage Design (AGD) standards for face and thread size, and bezel and stem diameter. Dial readings with three digits, such...

  • Color: White
  • Brand: Mitutoyo
  • ASIN: B002SG7PJI
  • UPC: 603908308508
  • Part No: 2358S-10
Mitutoyo Dial Indicator - Mitutoyo 543-783B Absolute Digimatic Indicator, ID-S-Type, Flat Back, #4-48 UNF Thread, 3/8
Mitutoyo 543-783B Absolute Digimatic Indicator, ID-S-Type, Flat Back, #4-48 UNF Thread, 3/8" Stem Dia., 0-0.5" Range, 0.0005" Resolution, +/-0.0008" Accuracy, Meets IP42

Mitutoyo Dial Indicator

The Mitutoyo 543-783B Absolute Digimatic electronic indicator gauge, ID-S series, is for measuring short, linear distances in mechanical engineering, machining, and manufacturing applications. It has a measurement range of 0 to 0.5" (0 to 12.7mm), a resolution of 0.0005" (0.01mm), and an accuracy of + or - 0.0008". The LCD displays in both inches and metric units. This model has a flat back for stem mounting or plate mounting on the rear of the indicator. An Absolute electrostatic capacitance linear encoder helps prevent overspeed errors for taking accurate measurements. This unit has a 3/8" diameter stem and a #4-48 UNF contact point thread mount. This model is Ingress Protection certified IP42 for protection against objects greater than 1mm and dripping water.Additional functions for this indicator include origin set, zero set, counting direction switching, and alerts for low voltage, counting value composition error, and overflow error. The measuring force is 2.0 Newtons (N) or less. It has a battery life of approximately 20,000 hours of normal use. This unit comes with an SR-44 battery. This gauge offers serial data output (using optional SPC cables, sold separately), which increases speed and reliability of digital measurement records.SpecificationsRange0 to 0.5" (0 to 12.7m...

  • Brand: Mitutoyo
  • ASIN: B00INU8TMK
  • Part No: 543-783B
Mitutoyo Dial Indicator - Mitutoyo 513-402-10E DIAL TI, BAS, STD 0.03
Mitutoyo 513-402-10E DIAL TI, BAS, STD 0.03", 0.0002" Accuracy, 0.0005",

Mitutoyo Dial Indicator

DIAL TEST INDICATOR, BASIC SET, STANDARD, . 03 IN, . 0005 IN GRAD The QR code is used by the factory to accurately match the inspection certificate to the test indicator.

  • Color: White
  • Brand: Mitutoyo
  • ASIN: B079H8T1LV
  • Part No: 513-402-10E

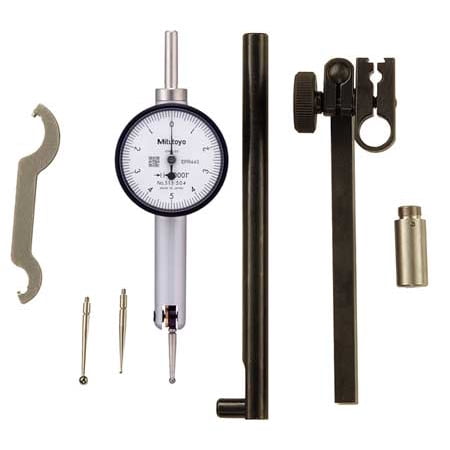

Mitutoyo Dial Indicator - Mitutoyo Dial Test Indicator Set, 513-504T
Mitutoyo Dial Test Indicator Set,

Mitutoyo Dial Indicator

  • Color: Multicolor
  • Price: 152

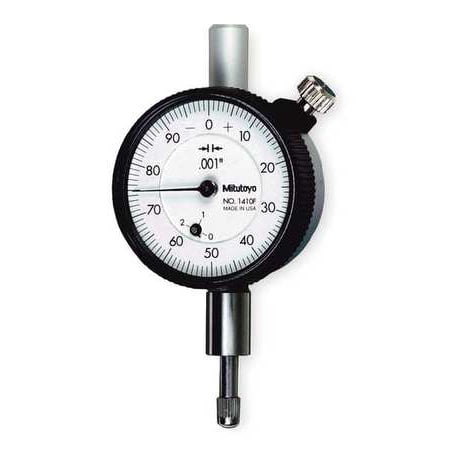

Mitutoyo Dial Indicator - Mitutoyo Dial Indicator, 1410s
Mitutoyo Dial Indicator,

Mitutoyo Dial Indicator

  • Color: White
  • Price: 88 149

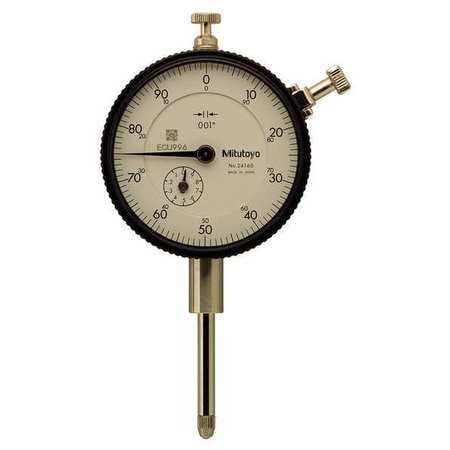

Mitutoyo Dial Indicator - Mitutoyo Dial Indicator, 2416S-10
Mitutoyo Dial Indicator,

Mitutoyo Dial Indicator

  • Model: 2416S-10
  • Color: White
  • Size: 2.250"2.250\"
  • Price: 129 173

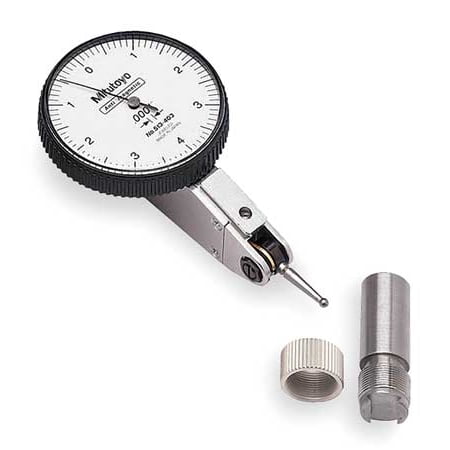

Mitutoyo Dial Indicator - Mitutoyo Dial Test Indicator, 513-403
Mitutoyo Dial Test Indicator,

Mitutoyo Dial Indicator

  • Model: 513-403
  • Color: White
  • Size: 1/2\"1-1/2"
  • Rating: 5.0
  • Price: 143 290

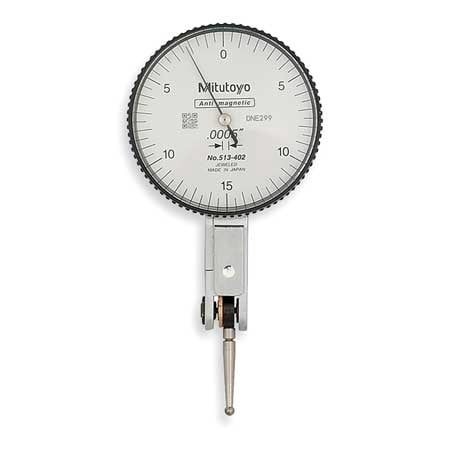

Mitutoyo Dial Indicator - Mitutoyo Dial Test Indicator, 513-402
Mitutoyo Dial Test Indicator,

Mitutoyo Dial Indicator

  • Color: White
  • Size: 1/21-1/2"
  • Rating: 4.667
  • Price: 110 212

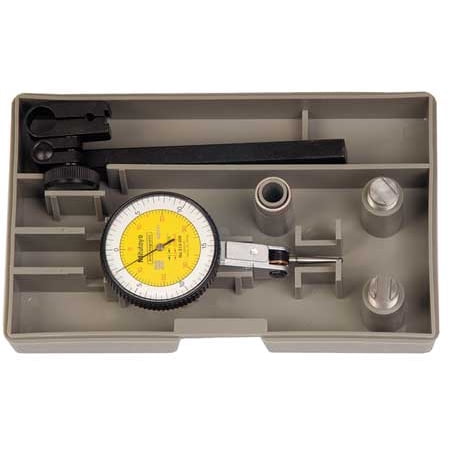

Mitutoyo Dial Indicator - Mitutoyo Dial Test Indicator Set, 513-406T
Mitutoyo Dial Test Indicator Set,

Mitutoyo Dial Indicator

  • Color: Multicolor
  • Rating: 5.0
  • Price: 129

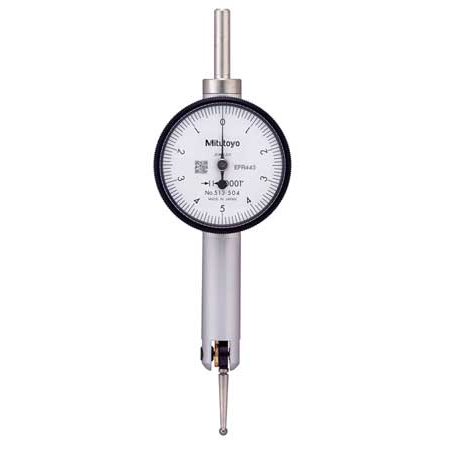

Mitutoyo Dial Indicator - Mitutoyo Dial Test Indicator, 513-504
Mitutoyo Dial Test Indicator,

Mitutoyo Dial Indicator

  • Color: Multicolor
  • Size: 1/4\"1-1/4"
  • Rating: 3.0
  • Price: 146 265
