Tektronix High Voltage Probe


Tektronix High Voltage Probe - Tektronix P5100A 100X 500 MHz Passive High Voltage Probe, 2.5 kV Max. Input Voltage, 2m Probe Length
Tektronix P5100A 100X 500 MHz Passive High Voltage Probe, 2.5 kV Max. Input Voltage, 2m Probe

Tektronix High Voltage Probe

The P5100A is a low-input capacitance High Voltage (2.5 kV) Probe designed for higher frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7-30 pF. A variety of screw-on accessories provide easy connection to the device under test.

  • Brand: Tektronix
  • ASIN: B005K0M45O
  • UPC: 013227120192
  • Part No: P5100A
Tektronix High Voltage Probe - Tektronix P5205A High Voltage Differential Probe, 100 MHz Bandwidth, 50X/500X Attenuation, ±1300 V Common Mode Voltage
Tektronix P5205A High Voltage Differential Probe, 100 MHz Bandwidth, 50X/500X Attenuation, ±1300 V Common Mode

Tektronix High Voltage Probe

The Tektronix P5205A active differential probe has a 100MHz bandwidth and is suitable for use with a Tektronix oscilloscope (sold separately) for safely measuring floating voltages up to +/- 1300 V. It is switchable between x50 and x500 attenuation, and the TekProbe interface communicates scale information to a Tektronix oscilloscope. It includes hook clips, alligator clips, pincer clips, and extension cables. This active differential probe is European Conformity (CE) approved and CAT II 1000V safety rated, and is suitable for applications such as safely measuring voltages in IGBT circuits in motor drives or power converters.Oscilloscopes are electrical testing devices used to verify the functionality of an electrical signal generator. Oscilloscopes measure an electrical signal over time, and display the waveform signals in a visual graph. The waveform shows the sweeps (or refresh) of voltage on a vertical (Y) axis, and can display time on a horizontal (X) axis. Details of a waveshape demonstrate the signal over time. Oscilloscopes can display in a digital or analog view. An analog oscilloscope has continuous waveform display, typically in a luminous phosphor. Some oscilloscopes can display more than one channel and type of measurement simultaneously. Some oscilloscopes can captu...

  • Color: Black
  • Brand: Tektronix
  • ASIN: B005K0M4J0
  • Part No: P5205A
Tektronix High Voltage Probe - Tektronix P5200A 50X/500X 50 MHz High Voltage Differential Probe, ±1300 V Common Mode Voltage, 1.8m Cable Length
Tektronix P5200A 50X/500X 50 MHz High Voltage Differential Probe, ±1300 V Common Mode Voltage, 1.8m Cable

Tektronix High Voltage Probe

The P5200A can be used with any oscilloscope and enables users to safely make measurements of floating circuits with their oscilloscope grounded. The P5200A Active Differential Probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground-referenced oscilloscope.

  • Brand: Tektronix
  • ASIN: B005V2GLUA
  • UPC: 013227293063
  • Part No: P5200A
Tektronix High Voltage Probe - Tektronix CT2 High Frequency AC Current Probe, 200 MHz Bandwidth, ±3% Accuracy, 36A Max. Peak Pulse Current
Tektronix CT2 High Frequency AC Current Probe, 200 MHz Bandwidth, ±3% Accuracy, 36A Max. Peak Pulse

Tektronix High Voltage Probe

The CT2 Current Probes are designed for permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly. The P6041 Probe Cable provides the connection between the CT1 and CT2 Current Transformers and a BNC oscilloscope input. A 50 Ω termination is required to terminate the cable when connected to a high-impedance (1 MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit.

  • Brand: Tektronix
  • ASIN: B005S3R0SY
  • Part No: CT2
Tektronix High Voltage Probe - Tektronix CT1 High Frequency AC Current Probe, 1GHz Bandwidth, ±3% Accuracy, 12A Max. Peak Pulse Current
Tektronix CT1 High Frequency AC Current Probe, 1GHz Bandwidth, ±3% Accuracy, 12A Max. Peak Pulse

Tektronix High Voltage Probe

The CT1 Current Probes are designed for permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly. The P6041 Probe Cable provides the connection between the CT1 and CT2 Current Transformers and a BNC oscilloscope input. A 50 Ω termination is required to terminate the cable when connected to a high-impedance (1 MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit.

  • Brand: Tektronix
  • ASIN: B00A7GYISW
  • Part No: CT1
Tektronix High Voltage Probe - Tektronix P5202A High Voltage Differential Probe, 100 MHz Bandwidth; 25X/250X Attenuation, ±640 V Common Mode Voltage
Tektronix P5202A High Voltage Differential Probe, 100 MHz Bandwidth; 25X/250X Attenuation, ±640 V Common Mode

Tektronix High Voltage Probe

The P5202A can be used with any oscilloscope. It enables users to safely make measurements of floating circuits with their oscilloscope grounded. The P5202A Active Differential Probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground-referenced oscilloscope.

  • Brand: Tektronix
  • ASIN: B00A7GYJWM
  • UPC: 013227120239
  • Part No: P5202A
Tektronix High Voltage Probe - Tektronix P5210 High Voltage Differential Probe
Tektronix P5210 High Voltage Differential

Tektronix High Voltage Probe

Tektronix P5205 is a 100 MHz Active Differential Probe capable of measuring fast rise times of signals in floating circuits. This 1,300 V differential probe can safely measure voltages in IGBT circuits such as motor drives or power converters. It is specifically designed to operate on Tektronix oscilloscopes with TEKPROBE® interface.

  • Brand: Tektronix
  • ASIN: B001KAK180
  • Part No: P5210

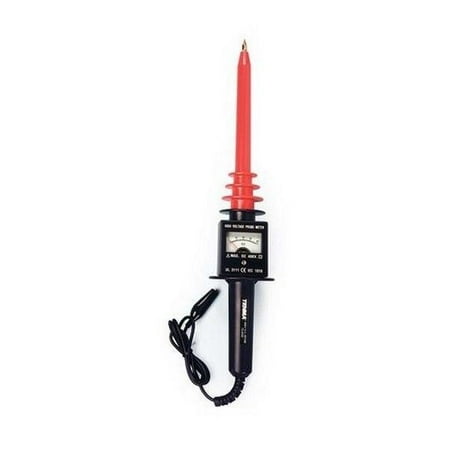

Tektronix High Voltage Probe - Brand New Tenma 72-6530 High Voltage Probe With Meter
Brand New Tenma 72-6530 High Voltage Probe With

Tektronix High Voltage Probe

  • Price: 123
Tektronix High Voltage Probe - Brand New Tenma 72-3040 High Voltage Probe
Brand New Tenma 72-3040 High Voltage

Tektronix High Voltage Probe

Tektronix High Voltage Probe - High Voltage Probe Meter
High Voltage Probe Meter

Tektronix High Voltage Probe

  • Price: 173
Tektronix High Voltage Probe - B&K PRECISION HV 44A High Voltage Probe Meter
B&K PRECISION HV 44A High Voltage Probe

Tektronix High Voltage Probe

  • Model: HV 44A
  • Color: Multicolor
  • Price: 120

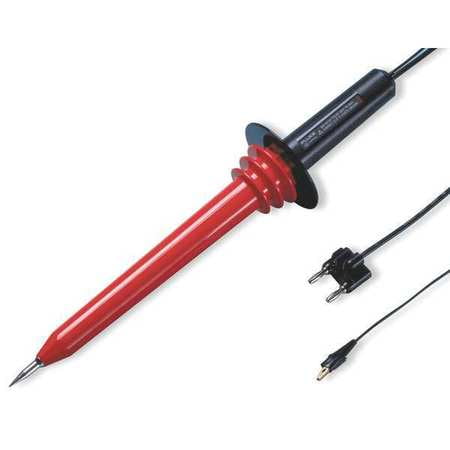

Tektronix High Voltage Probe - FLUKE Fluke-80K-40 High Voltage Probe
FLUKE Fluke-80K-40 High Voltage

Tektronix High Voltage Probe

  • Color: Multicolor
  • Rating: 4.5
  • Price: 241
Tektronix High Voltage Probe - NEW Brand No.84N1416 Tenma 72-6530 Test Probe, High Voltage, 0 To 40Kvdc
NEW Brand No.84N1416 Tenma 72-6530 Test Probe, High Voltage, 0 To

Tektronix High Voltage Probe

  • Price: 101
Tektronix High Voltage Probe - BK Precision PR 28A 40kV High Voltage Digital Multimeter Probe
BK Precision PR 28A 40kV High Voltage Digital Multimeter

Tektronix High Voltage Probe

  • Model: PR 28A
  • Rating: 5.0
  • Price: 75
